ECOSAN. PP-R PIPE SYSTEM FOR HOT & COLD POTABLE WATER

Suitable for: Potable water (H&C) Agriculture Irrigation Heating Compressed air Geothermal

EASY INSTALLATION – DECADES OF USE WITHOUT PERFORMANCE LOSSES OR LEAKAGE. THE ADVANTAGES OF OUR PP-R/PP-RCT PIPING SYSTEM:

Enormous durability
High operational reliability
High demands for hygiene
Great thermal load capacity
High chemical resistance
Minor flow noise
High dimensional accuracy and low weight
Time- and cost-saving pipe laying

The ECOSAN installation system consists of various pipes designed for various fields of application and guarantees a flawless supply of the most precious of all comestibles: drinking water.

The ECOSAN PP-R/PP-RCT plastic pipe installation system is the universal solution for supply lines in new buildings, renovations or repairs. Whether potable water installation, cold and hot water pipes or other liquids. Ecosan meets a wide range of requirements for supply lines such as residential buildings, hospitals, hotels, office buildings, schools. Ecosan piping systems from POLYMELT combine the highest quality with easy installation and decades of use without performance losses or leaks.

The POLYMELT ECOSAN Product lines

ECOSAN Pipe SDR 6 / S 2.5 PP-R Pipe

Suitable for

Potable water (H&C)
Agriculture
Irrigation

PP-R plastic pipe for hot and cold water acc. to DIN 8077/78 and EN ISO 15874, class 1/10 bar, class 2/8 bar, 70°/10 bar, 20°/30 bar, DVGW CS0357, WRAS 1910531 and SKZ certificate A 553, colour green with red line. Standard delivery length: 4,0 m, other length on request.

Art. No.	Outer Ø (mm)	Wall thickness (mm)	Inner Ø (mm)	DN
16002	20	3,2	13,2	12
16003	25	4,2	16,6	15
16004	32	5,4	21,2	20
16005	40	6,7	26,6	25
16006	50	8,3	33,4	32
16007	63	10,5	42,0	40
16008	75	12,5	50,0	50
16009	90	15,0	60,0	–
16010	110	18,3	73,4	65
16011	125	20,8	83,4	80

ECOSAN Pipe SDR 7.4 / S 3.2 PP-R Pipe

Suitable for

Potable water (H&C)
Agriculture
Irrigation

PP-R plastic pipe for hot and cold water acc. to DIN 8077/78 and EN ISO 15874, class 1/8 bar, class 2/6 bar, 70°/8 bar, 20°/20 bar, colour green with black line. Standard delivery length: 4,0 m, other length on request.

Art. No.	Outer Ø (mm)	Wall thickness (mm)	Inner Ø (mm)	DN
16302	20	2,8	14,4	12
16303	25	3,5	18,0	20
16304	32	4,4	23,2	25
16305	40	5,5	29,0	32
16306	50	6,9	36,2	40
16307	63	8,6	45,8	50
16308	75	10,3	54,4	50
16309	90	12,3	65,4	65
16310	110	15,1	79,8	80
16311	125	17,1	90,8	100

ECOSAN Pipe SDR 9 / S 4 PP-RCT Pipe

Up to 35% higher flow rate!

Suitable for

Potable water (H&C)
Agriculture
Irrigation

PP-RCT plastic pipe for hot and cold water acc. to DIN 8077/78 and EN ISO 15874, class 1/8 bar, class 2/8 bar, 70°/10 bar, 20°/20 bar, colour green with orange line. Standard delivery length: 4,0 m, other length on request.

Art. No.	Outer Ø (mm)	Wall thickness (mm)	Inner Ø (mm)	DN
16923	25	2,8	19,4	20
16924	32	3,6	24,8	25
16925	40	4,5	31,0	32
16926	50	5,6	38,8	40
16927	63	7,1	48,8	50
16928	75	8,4	58,2	–
16929	90	10,1	69,8	65
16930	110	12,3	85,4	80
16931	125	14,0	97,0	100

ECOSAN Pipe SDR 11 / S 5 PP-R Pipe

Suitable for

Potable water (H&C)
Agriculture
Irrigation

PP-R plastic pipe for hot and cold water acc. to DIN 8077/78 and EN ISO 15874, class 1/6 bar, class 2/4 bar, 70°/5 bar, 20°/15 bar, colour green with blue line. Standard delivery length: 4,0 m, other length on request.

Art. No.	Outer Ø (mm)	Wall thickness (mm)	Inner Ø (mm)	DN
16102	20	1.9	16.2	15
16103	25	2.3	20.4	20
16104	32	2.9	26.2	25
16105	40	3.7	32.6	32
16106	50	4.6	40.8	40
16107	63	5.8	51.4	50
16108	75	6.8	61.4	–
16109	90	8.2	73.6	65
16110	110	10.0	90.0	80
16111	125	11.4	102.2	100

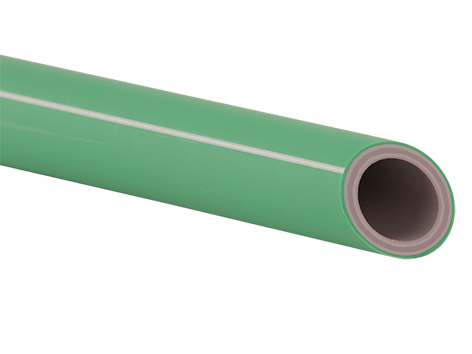

ECOSAN ML5 Fibre Pipe SDR 7.4 /
S 3.2 PP-R, PP-RCT

polymelt_PPR_Ecosan_Pipe_ML5_Fibre_SDR_74_11

Suitable for

Potable water (H&C)
Agriculture
Irrigation
Heating
Compressed air
Geothermal

PP-R/PP-RCT plastic pipe for hot and cold water acc. to DIN 8077/78 and EN ISO 15874, class 1/8 bar, class 2/8 bar, 70°/11 bar, 20°/25 bar, WRAS 1910531, SKZ certificate A 634, colour green with silver line. Standard delivery length: 4,0 m, other length on request.

Art. No.	Outer Ø (mm)	Wall thickness (mm)	Inner Ø (mm)	DN
16322	20	2.8	14.4	15
16323	25	3.5	18.0	20
16324	32	4.4	23.2	25
16325	40	5.5	29.0	32
16326	50	6.9	36.2	40
16327	63	8.6	45.8	50
16328	75	10.3	54.4	–
16329	90	12.3	65.4	65
16330	110	15.1	79.8	80
16331	125	17.1	90.8	100
16342	160	21.9	116.2	125
16343	200	27.4	145.2	150
16344	250	34.2	181.6	200

ECOSAN ML5 Fibre Pipe SDR 11 /
S 5 PP-R, PP-RCT

Suitable for

Potable water (H&C)
Agriculture
Irrigation
Heating
Compressed air
Geothermal

PP-R/PP-RCT plastic pipe for hot and cold water acc. to DIN 8077/78 and EN ISO 15874, class 1/6 bar, class 2/6 bar, 70°/7 bar, 20°/16 bar, WRAS, SKZ, colour green with silver line. Standard delivery length: 4,0 m, other length on request.

Art. No.	Outer Ø (mm)	Wall thickness (mm)	Inner Ø (mm)	DN
16361	125	11.4	102.2	100
16362	160	14.6	130.8	125
16363	200	18.2	163.6	150
16364	250	22.7	204.6	200

ECOSAN ML5 Fibre Pipe SDR 7.4 /
S 3.2 PP-R

Suitable for

Potable water (H&C)
Agriculture
Irrigation
Heating
Compressed air
Geothermal

PP-R plastic pipe for hot and cold water acc. to DIN 8077/78 and EN ISO 15874, class 1/8 bar, class 2/6 bar, 70°/8 bar, 20°/20 bar, WRAS, SKZ, colour green with white line. Standard delivery length: 4,0 m, other length on request.

Art. No.	Outer Ø (mm)	Wall thickness (mm)	Inner Ø (mm)	DN
16722	20	2.8	14.4	15
16723	25	3.5	18.0	20
16724	32	4.4	23.2	25
16725	40	5.5	29.0	32
16726	50	6.9	36.2	40
16727	63	8.6	45.8	50
16728	75	10.3	54.4	–
16729	90	12.3	65.4	65
16730	110	15.1	79.8	80
16731	125	17.1	90.8	100
16732	160	21.9	116.2	125
16733	200	27.4	145.2	150
16734	250	34.2	181.6	200

ECOSAN ML5 Fibre Pipe SDR 9 /
S 4 PP-RCT

polymelt_PPR_Ecosan_Pipe_ML5_SDR_9_S4_PRCT

Suitable for

Potable water (H&C)
Agriculture
Irrigation
Heating
Compressed air
Geothermal

PP-RCT plastic Pipe for hot and cold water acc. to DIN 8077/78 and EN ISO 15874, class 1/8 bar, class 2/8 bar, 70°/10 bar, 20°/20 bar, colour green with golden line. Standard delivery length: 4,0 m, other length on request.

Art. No.	Outer Ø (mm)	Wall thickness (mm)	Inner Ø (mm)	DN
16524	32	3.6	24.8	25
16525	40	4.5	31.0	32
16526	50	5.6	38.8	40
16527	63	7.1	48.8	50
16528	75	8.4	58.2	–
16529	90	10.1	69.8	65
16530	110	12.3	85.4	80
16531	125	14.0	97.0	100

POLYMELT ECOSAN PIPES: THE IDEAL PIPE SYSTEM FOR HOT & COLD POTABLE WATER

POLYMELT plastic pipes made of PP-R and PP-RCT are manufactured according to DIN EN ISO 15874, EN ISO 21003 and DIN 8077/78 and fulfil their quality requirements. Not only the ideal system for potable water but also for compressed air systems, agriculture and horticulture, Industries (e.g. transportation of aggressive media like acids, alkaline solutions, etc.), heating installations, shipbuilding and other media/applications upon request.

ECOSAN FITTINGS

The PP-R-metal connection of the ECOSAN fittings excels by its leakproofness and resistance to torsion. This connection withstands decades of operational loads without any difficulty. Thanks to the specific geometry of their inserts, which are made of high-grade brass, the moulded parts meet the highest safety standards and guarantee safe laying.

Please find all fittings in our technical manual

Applications of POLYMELT ECOSAN PP-R and PP-RCT pipe systems

The ECOSAN installation system fulfils a variety of demands made on supply lines. It is suitable for universal use in new buildings, refurbishment, repairs.

In drinking water installations for cold and hot water pipes in residential buildings, hospitals, hotels, office buildings, schools, etc., for example:

Service connections
Boiler connections
Water distributing systems
Rising lines
Floor-level distribution
Fittings

as well as piping networks for:

Rainwater systems
Outside pipe laying
Compressed air systems
Agriculture and horticulture
Industries, for example the transportation of aggressive media (acids, alkaline solutions, etc.), taking into account its resistance to chemical agents
Heating installations
Shipbuilding and further media and possible applications upon request.
